Payment Device We truly appreate for your support and will give back to our customers.

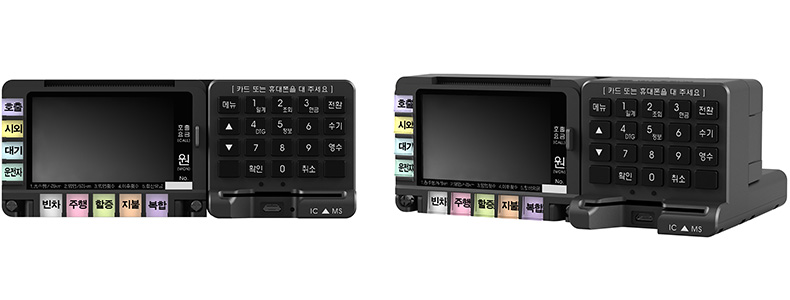

Model : GIT-S500
- [Features]
- Digital Taximeter with paymet device
- Payment function through IC, MS and RFID
- Accurate payment through card settlement
- Built-in modem and RF card antenna
- Vehicle traveling recorder data stored over 2 years
- location tracking with GPS
- Built-in digital ehicle traveling recorder
- RPM, speed, accelelator pedal, brake sensor signal stored
- 3" TFT color LCD panel application
- Approved ISO9001, Inno-biz company and "Q" quality guarantee mark for venture company
- [Specifications]
- LCD: 3" TFT color LCD
- Printer: 2" Thermal printer
- Payment method: IC, MS credit and debit card and RFID prepaid card
- Communication method: Off line payment through communication medem
- Circuit: Vehicle surge prevention circuit diagram
- Interlocking: Link with call navigation and meter
- Modem: LTE internal or external type
- Built-in memory: Land Flash Memory 2G
- External memory: Micro SD card 2G~8G
- External connection port: 5 serial port, 1 GPS port
- Operating voltage: DC 6V ~ DC 25V
- Operating temperature: -20℃ ~ 70℃
- Size: 164(W) x 64(H) x 52(D)(mm)
- [Specifications]
- CPU: Cortex-ARIM 32Bit RISC CPU
- Working RAM: 1024K byte SRAM
- Program Memory: 8M byte Nor-Flash
- Flash Memory: 64K byte(Parallel Flash)
- Static RAMS: 8M bit
- Touch Panel: Touch Screen 4Wire Glare Type
- Display: 480 x 800 Pixel, TFT Color LCD
- Smart Card: ISO 7816, T=0, T=1, EMV LEVEL1,2
- Magnetic Card Reader: IOS 7811, Track II
